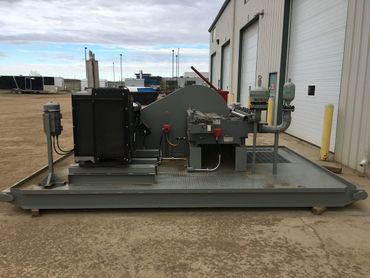

(RGW 044) Gardner Denver GD55 Pump Skid


Gardner Denver GD55 Pump


Gardner Denver GD55 Plunger pump with 2-1/4" Tungsten plunger.

Pump will do 295 M3/day (54 GPM) at a max 1310 psi discharge.

Pump skid is concrete and can be placed on timbers.

Ford 300 Nat. gas / Propane Engine


Ford 300 engine can run at a max 1800 RPM and will provide enough horse power to operate the plunger pump effectively.

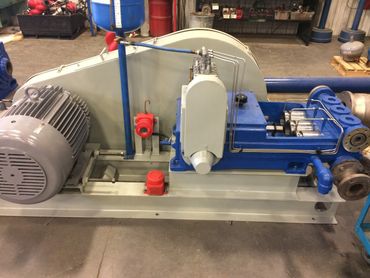

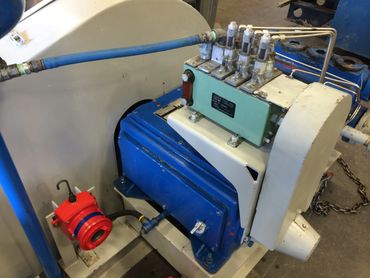

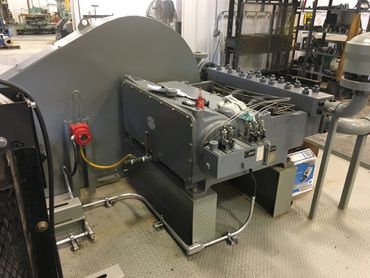

National J-80L PLunger pump

3.375" plunger @ 400 RPM Pump will do 759 M3/day (139.4 GPM) with 708 psi max discharge.


2" plunger @ 400 RPM Pump will do 267 M3/day (49 GPM) with 2017 max discharge.

Package includes:

- Fully Reconditioned J80L Pump

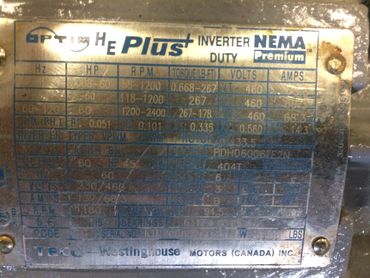

- Reconditioned TECO 60HP 1200 RPM 230/460 volt TEFC motor

- 3 feed lubricator with day tank


Please contact for more information.

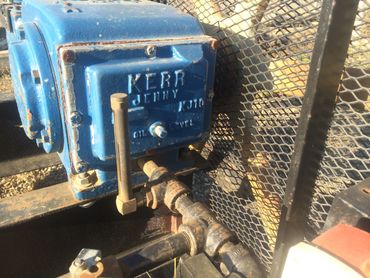

(RGW 019) Kerr KJ-2250 Pump Package

Kerr KJ-2250 Pump Package

Pump is currently setup with 1.5" plungers. With the pump running at 350 RPM it will put out 73 M3/day (13.4 GPM) with a max discharge pressure of 1300 PSI.

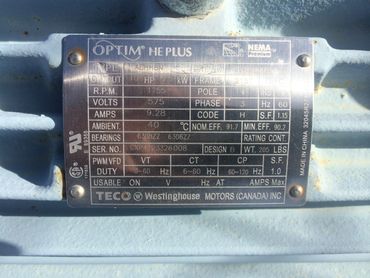

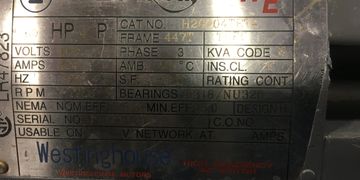

Skid is currently setup with a TECO-Westinghouse 10HP 575 volt TEFC electric motor.

Kerr KJ-2250 (pdf)

Download

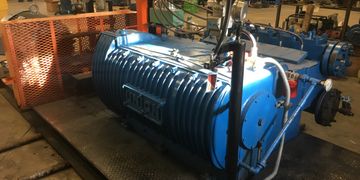

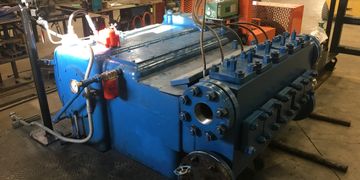

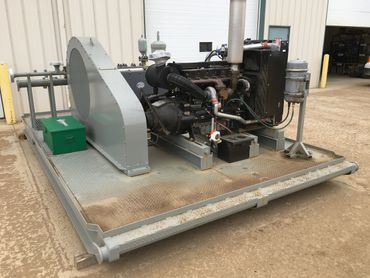

Union QD200B Plunger Pump

Pump currently has 2" plungers and is set up to do 477 M3/day @ 320 Pump RPM. The max discharge pressure on the pump is 3180 PSI.

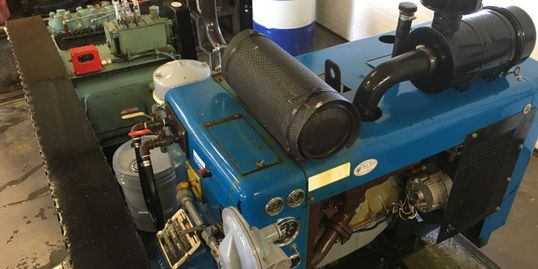

Perkin's Diesel Engine

The Perkins diesel engine is designed to run at 1900 RPM & deliver 220 HP.

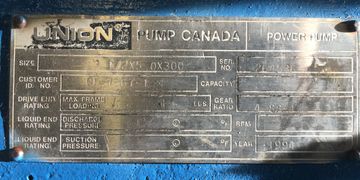

(RGW 005) Union QX300 Pump Skid






Union QX-300 Rental Skid


- Pump currentaly has 3.5" plungers and can do 1400 M3/day (260 GPM)  with a max discharge pressure of 1400 PSI

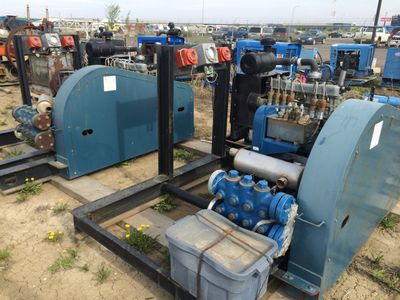

(RGW 033) National J-30L Pump Skid


National J-30L pump skid with Ford 300 Naural gas engine

Pump currently has 2-1/4" Plunger and will do 225 M3/day (41.3 GPM) at 897 max psi discharge.


Pump can be converted to other plunger configurations to increase discharge pressure and lower volume.


Ford 300 Engine can be ran off natural gas or propane.


Please contact for rental or purchase prices.
